The Use of 5 8 Id Tube in Hydraulic Systems
Roughly 68% of homes in the U.S. built before 1980 still use copper for some portion of their water supply. This underscores the lasting importance of copper pipe fittings in plumbing systems. In this guide, we cover the essential copper fittings used throughout plumbing systems. These fittings join, redirect, and control water, gas, and refrigerant flows. Common examples include elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
Check out 5 8 Copper Pipe
Copper remains a favorite among contractors and DIYers thanks to its durability, heat resistance, and water-quality benefits. Copper fittings can last for decades when they are installed correctly. That makes them a cost-effective option for many plumbing projects.
This article will show you how to identify fittings based on size and function. We will also compare soldered connections with mechanical ones. You will also learn how to locate compatible parts from reliable suppliers such as Installation Parts Supply. Our goal is to provide clear advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: Overview And Reasons To Choose Copper
Copper pipe fittings are a preferred choice for both residential and commercial plumbing. Their mix of strength, workability, and proven long-term performance makes them suitable for a wide range of systems. This overview explains the main reasons plumbers and contractors choose copper for new installations and repairs.
The Benefits of Copper
Copper is well known for being both durable and malleable, allowing fittings like elbows and tees to be shaped without cracking. Its ability to withstand high temperatures makes it perfect for hot water supply and boiler loops. It also has bacteriostatic properties, which can make potable water systems safer than some plastic alternatives. It can be connected using solder, press systems, compression methods, or push-fit solutions, giving installers more flexibility.
Longevity and corrosion resistance
Copper tubing can last between 70 to 80 years when installed correctly. Its surface oxidation forms a protective patina, limiting deeper corrosion and supporting its longevity and corrosion resistance. To avoid pinhole leaks and premature failure, you need quality materials, proper fluxing, and clean joints. Regular inspections and the use of correct fittings can further extend its service life in both supply lines and HVAC loops.
Where Copper Outperforms Other Materials
Copper surpasses many alternatives in hot-water systems, refrigeration lines, and high-pressure applications. In HVAC and refrigeration work, pipe 5 8 and copper tube 5/8 sizes are commonly used in refrigerant circuits because they perform reliably under heat and pressure. Compared to PVC or PEX, copper fittings can handle higher temperatures and maintain rigidity under stress. Copper is also less prone to impact damage than multilayer or composite pipes, and it has a proven record in older systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Strength and Durability | High tensile strength and wear resistance | Hot-water supply, boiler loops |
| Temperature tolerance | Withstands high temperatures without softening | Water heaters, HVAC lines |
| Corrosion performance | Forms protective patina that slows degradation | Long-run supply lines in homes |
| Connection methods | Soldering, brazing, compression, push-fit, press | New installs and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 for refrigeration | Refrigerant circuits and tight commercial runs |

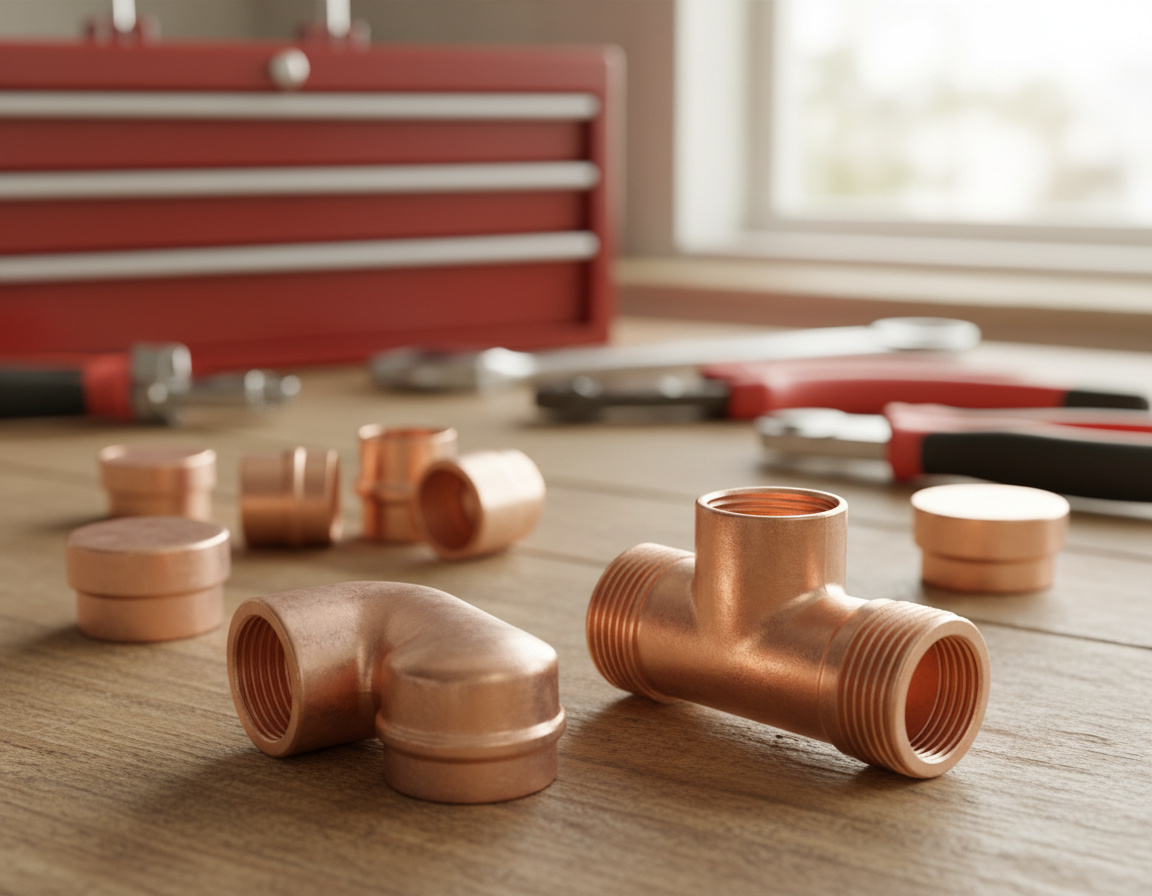

Common Copper Pipe Fittings For Supply Lines
Choosing the right copper fittings is key to a successful project. This section covers the essential fittings used on water supply lines, including fittings for changes in direction and service access. Be sure to consider connection style, pipe size, and material compatibility as you plan.
Elbows, Tees, And Crosses: Direction Changes And Branching
Elbows guide flow around corners and are available in 90°, 45°, and 22.5° configurations. They are especially useful when you need to route around obstacles or follow wall paths. Tees split or combine flow for three-way connections, common in kitchens and bathrooms. Crosses connect four directions, ideal for where systems meet.
These fittings come in various styles, including sweat/soldered, press, and compression. Select the connection method that works best with your copper pipe connectors and the installer’s skill set.
Couplings, Adapters, And Unions For Joining And Maintenance
Couplings are used to join two pieces of copper pipe with the same diameter. Reducing couplings are used when different sizes must be joined. Adapters are used to convert between materials and thread styles, such as copper-to-brass or copper-to-PEX.
Unions make it easy to separate sections for repairs or equipment servicing. They are ideal in places where a valve or fixture must be removed periodically. Make sure unions and adapters match the pipe OD or nominal size to avoid leaks.
Caps, Plugs, And Clean-Outs For Access And Sealing
Caps are used to seal the end of a line, while plugs thread into fittings to close off branches. Both are used for pressure testing and temporary terminations. For maintenance and clearing blockages, clean-outs offer service access to drain lines.
Select caps, plugs, and clean-outs that match the system material and pressure rating. Confirm the fitting size reference—nominal, OD, or ID—is correct, as this is critical for 5 8 copper fittings and others.
As you plan a project, make sure copper pipe connectors, couplings, adapters, and unions are compatible with the pipe type. This helps prevent fit problems and makes maintenance easier.
Copper Compression And Push-To-Connect Fittings
Compression and push-to-connect fittings streamline copper plumbing, making it faster and safer in many scenarios. They are ideal when a soldering torch is impractical or when a quick fix is necessary. Below, we explain how each system works, where it is best used, and the key installation tips for 5/8 copper tube projects.
How A Compression Fitting Forms A Seal
Compression fittings use a nut and a ferrule to create a seal. When the nut is tightened, the ferrule compresses around the tube and bites into the copper. This creates a leak-resistant joint without using heat. These fittings are often used on supply lines and in repair work where a torch is impractical.
These joints are effective on various sizes, including 5 8 copper pipe fittings. When properly installed, they can be disassembled later, which makes them ideal for accessible valves and meter connections.
Fast Installations With Push-To-Connect Fittings
Push-to-connect copper fittings, also known as quick-connect fittings, allow you to push a deburred tube into the body until it clicks. They require no solder, no crimping, and no special tools. This ease of use makes them popular among both DIYers and professionals working in confined areas.
These fittings are available for common sizes such as 5/8 copper tube. Many manufacturers publish pressure and temperature ratings for them. Reliable results depend on matching the fitting to the tubing type and following the manufacturer’s depth guidelines.
Why These Fittings Are Better Than Solder In Some Jobs
Compression and push-fit copper fittings remove the need for a torch, open flame, and flux. That helps reduce fire hazards in occupied buildings and can speed retrofit projects. They save time on emergency repairs and in situations with limited clearance.
It’s important to note that mechanical fittings might be more expensive per unit and have lower temperature limits than soldered joints. Always verify the ratings before using quick-connect fittings on high-pressure or hot-water lines. When properly used, these fittings provide a safe and flexible alternative to soldering in many plumbing applications.
Sweat And Soldered Copper Fittings
A sweat connection forms a strong bond between a fitting and a pipe by using flux and filler metal. Brazing, on the other hand, employs higher heat and a different filler that melts above 840°F. It’s commonly used in refrigeration and HVAC joints. When done correctly, both methods create durable, long-lasting joints.
Overview Of Techniques
Sweat copper fittings use solder to fill the gap between copper tube and fitting. Brazing copper pipe uses a hotter flame and brazing rod and is ideal for joints exposed to higher pressure and temperature. The decision between these methods depends on the system requirements and local code rules.
Tools and safety gear
The main tools include a tube cutter, a deburring tool, a wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is commonly used for soldering, while brazing is better handled with MAPP or acetylene. Protective goggles, a face mask or respirator, heat-resistant gloves, an apron, and safety shoes should always be worn.
Step-By-Step Soldering Tips
- Square-cut the copper tube 5/8 section, then deburr the edge for a proper fit.
- Clean the fitting and pipe with a wire brush or emery cloth until bright copper shows.
- After applying flux to the cleaned surfaces, assemble the joint and twist it slightly to distribute the flux.
- Heat the fitting evenly with a surrounding flame. When brazing copper pipe, watch for a slight red tint as the temperature rises.
- Apply solder or brazing rod at the joint, then allow capillary action to draw the filler through the seam.
- Let the joint cool on its own, then remove any soot and flux residue using an appropriate cleaner.
When to choose soldered fittings
Choose copper solder fittings when you need a permanent, dependable joint in potable-water systems and moderate-temperature applications. Brazing is better suited for HVAC or refrigeration where higher temperature resistance is needed. Any work involving 5/8 copper tubing or copper tube 5/8 sized lines should follow manufacturer instructions and code requirements for pressure compatibility.
Practical considerations
Skilled technique is essential to avoid cold joints and porosity. Each joint should be checked for complete solder coverage, and the system should be pressure-tested before concealment or insulation. Sweat copper fittings are a staple for many plumbing jobs, while brazing copper pipe is ideal for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings For Refrigeration And HVAC
Refrigeration and HVAC systems need precise tubing and fittings to move refrigerant safely. Technicians choose materials and connection types based on pressure, service access, and code requirements. Understanding common fitting styles and sizes helps prevent leaks and future service problems.
5/8 copper pipe is commonly used for liquid and suction lines in residential and light commercial systems. Before ordering parts, it is important to confirm whether the specification refers to nominal size or outside diameter (OD).
5 8 copper tube needs to match fittings that are sized for that outside diameter. If the parts are mismatched, the result can be poor seals and unsafe joints. Manufacturer compatibility charts should be used when selecting copper pipe fittings refrigeration parts.
Uses For 5/8 Copper Pipe And 5/8 Refrigeration Tubing
For refrigerant lines, precise bends and consistent wall thickness are essential. A section of 5 8 copper refrigeration tubing works well for liquid lines and smaller suction runs. Service valves, meters, and filter driers are often designed around 5/8 OD copper tubing.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
Flare fittings create a seal by compressing a flared tube end beneath a flare nut. Where serviceability matters, such as at gauges and access panels, technicians often use flare fittings. Flare joints are convenient in the field because they can be hand-tightened.
Bite-type fittings rely on a ferrule that bites into the wall of the tube when tightened. When flaring is difficult or space is tight, installers frequently choose bite-type fittings. These fittings are valued in mobile applications because they assemble quickly and resist vibration well.
Brazed fittings form metallurgical joints that are strong and leak-resistant. HVAC systems handling high pressures or elevated temperatures often require brazed connections. For certain refrigerants and high-pressure circuits, codes and manufacturers may require brazing.
Sizing Notes For 5 8 Copper OD, ID, And Compatible Fittings
Be sure to confirm the difference between 5/8 od copper tubing and 5/8 id pipe before purchasing fittings. A 5/8 id pipe has a smaller OD than tubing labeled 5/8 OD. Checking both ID and OD helps prevent fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid/suction lines, service connections | Rare for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, and brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to inner-diameter plumbing standards |
| Installation Note | Check flare nut size and ferrule type before flaring or tightening | Measure the OD when adapting to HVAC components to ensure proper fit |
| Pressure Suitability | High-pressure refrigerant circuits with correct wall thickness | Varies by pipe class and is often lower than refrigeration-rated tubing |
When selecting parts, match the fitting specification to the tubing OD and choose copper pipe fittings refrigeration products that state compatibility with 5/8 od copper tubing. Keep a stock of flare fittings and bite-type fittings for field repairs. Use brazed fittings wherever system pressure or code requirements call for permanent, high-strength joints.
Choosing The Right Copper Fitting: Sizing, Material, And Code Considerations
Choosing the right copper fitting involves precise measurements and understanding performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. That step is critical if you want to avoid leaks and make sure the fitting matches the system.
Many refrigeration and HVAC parts are sized by outside diameter. For instance, 5 8 copper pipe od is common in refrigeration tubing. Residential plumbing, however, often relies on nominal sizes related to internal diameter. Before buying, always review the manufacturer’s notes for 5/8 in copper pipe sizing.
As you match fittings to pipe, confirm whether the tubing is described as 5 8 id tube or 5 8 od tubing. Compression, sweat, flare, and brazed fittings all require specific preparation and clearances. The fitting method should be selected according to the application and pressure level.
System pressure and temperature dictate the choice of material and joint type. For hot potable water, soldered or press fittings rated for high temperatures are recommended. Flare or brazed joints are well suited to high-pressure refrigerant lines. When copper must connect to other metals, brass adapters are often ideal.
Local plumbing codes also play a significant role. Check local plumbing codes copper fittings requirements before you start any work. Some jurisdictions require brazed joints for HVAC refrigerant systems or restrict mechanical fittings in concealed locations. Look for NSF/ANSI or UPC certifications to meet code and warranty standards.
When selecting the best copper fittings, purchase from reputable suppliers like Ferguson or Grainger and follow manufacturer instructions. If in doubt, consult a licensed plumber or HVAC technician to confirm the fit and rating. This approach helps avoid costly rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing | 5 8 copper pipe OD | High-pressure refrigerant applications | Fittings usually sized by OD; use flare or brazed joints |
| Water-supply tubing | 5/8 in copper pipe sizing (nominal) | Residential water supply | Check whether the label refers to ID or nominal size |
| Compression fittings | Marked by tube OD or nominal ID | Retrofit work and quick repairs | Suitable for low-to-moderate pressure; follow torque specifications |
| Sweat or soldered fittings | Usually listed by nominal size | Hot water, durable joints | Proper cleaning, heat, and flux are required for leak-free joints |
| Flare fittings | 5 8 id tube or 5 8 OD in certain specifications | Fuel lines and refrigeration lines | Do not mix flare and compression unless rated for both |
| Required certifications | UPC and NSF/ANSI | Potable-water systems | Required under many local plumbing codes copper fittings requirements |
A detailed checklist should be followed: confirm sizing, verify certifications, choose fittings for the correct pressure and temperature, and ensure proper installation. This approach helps you select copper fittings that perform well and comply with local regulations.
Installation Tips, Common Errors, And Maintenance For Copper Fittings
Preparation is key to avoiding failures. Adhering to basic installation tips for copper fittings can significantly reduce leaks and rework. The way the system is assembled plays a major role in its long-term performance. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, Deburring, And Cleaning Before Assembly
Start by using a proper tube cutter to ensure a square cut. After cutting, remove burrs and copper shavings from the pipe end and ID. The outer pipe end and inner fitting surface should be cleaned with emery cloth or a wire brush. That step is necessary so flux and solder can flow evenly. If preparation is skipped, capillary action can be compromised and leaks may occur.
Using Flux, Heat, And Solder Properly While Avoiding Cold Joints And Leaks
Apply flux evenly to both mating surfaces before assembling the joint. Then, heat the fitting. When soldering copper pipe, keep the flame moving to ensure uniform heat distribution. Apply solder to the heated seam so capillary action can draw it in. Avoid overheating, since it can burn off flux and weaken the joint, and avoid underheating, which creates leaking cold joints.
Using Teflon Tape And Thread Sealants While Avoiding Overtightening
On threaded copper fittings, apply Teflon tape or a compatible pipe thread sealant to the male threads. The tape should be wrapped clockwise so it stays in place as the fitting is threaded. Do not overtighten, because too much torque can crack fittings or strip threads. For compression fittings, follow the manufacturer’s torque or turn count to avoid crushing ferrules.
Routine inspection, leak prevention, and when to replace fittings
Regularly inspect copper fittings for signs of corrosion, pinhole leaks, and mechanical damage. Leak prevention starts with correct assembly but continues with periodic checks. If leaks persist after tightening, corrosion is visible, or the system is being upgraded to modern standards, the fittings should be replaced.
Common errors include skipping cutting, deburring, and cleaning steps, mixing OD and ID sizing conventions, overheating joints during soldering, and ignoring pressure limits set by the manufacturer. Always keep spare parts from trusted suppliers like Mueller Industries or Viega and follow product instructions to maintain reliable systems.
Conclusion
Copper pipe fittings stand out in plumbing and HVAC due to their durability, heat tolerance, and long lifespan. Whether you choose soldered joints, compression fittings, push-to-connect fittings, flare connections, or brazed assemblies depends on the details of the job. Correctly matching the fitting size and type is critical. To avoid mistakes, pay close attention to OD versus ID sizing, especially with sizes like 5/8.
When selecting copper fittings, ensure they meet pressure ratings, material standards, and local codes. For dependable support and quality products, work with a trusted wholesale distributor such as Installation Parts Supply. Such suppliers can provide compatibility charts and certification details that help guide product selection for plumbing projects.
Proper preparation and installation are essential for a long-lasting system. Begin by cutting, deburring, and cleaning pipe ends. Then, follow the recommended methods for fluxing, heating, or mechanical assembly. To maintain a safe, leak-free system, carry out regular inspections and replace worn fittings on time.
